PostPosted: Sun 7 Jul - 01:12 (2013)    Post subject: Homemade chassis project Reply with quote

Some news...

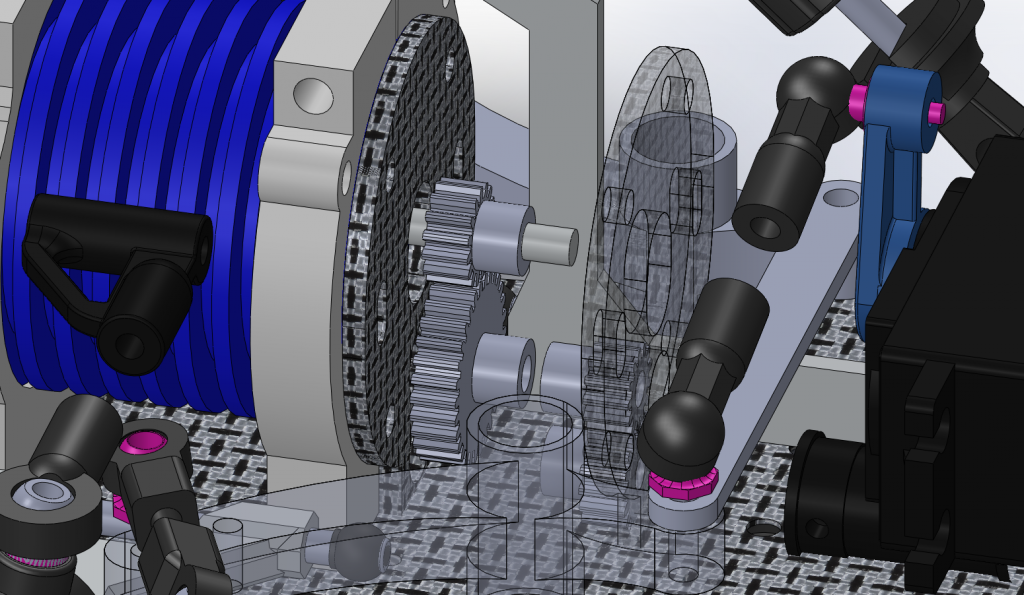

motor pinions Mr. Green now I have a lot of place for the steering




The steering is completed. Next step : the rear of the chassis


Back to top
Publicité






PostPosted: Sun 7 Jul - 01:12 (2013)    Post subject: Publicité

PublicitéSupprimer les publicités ?
Back to top
Dorvack


Offline

Joined: 11 Jun 2013
Posts: 40
Masculin

PostPosted: Sun 7 Jul - 08:11 (2013)    Post subject: Homemade chassis project Reply with quote

Please delete.

Last edited by Dorvack on Mon 3 Mar - 13:38 (2014); edited 1 time in total
Back to top
Dragula


Offline

Joined: 24 May 2013
Posts: 28
Localisation: France

PostPosted: Sun 7 Jul - 11:40 (2013)    Post subject: Homemade chassis project Reply with quote

Thanks for your comment Dorvack.

Your IFS system is awesome Mr. Green



Your shocks are attached on the upper deck and I don't use upper deck on my prototype. I keep your idea in mind, I will try something which looks like your system Wink


Back to top
Dragula


Offline

Joined: 24 May 2013
Posts: 28
Localisation: France

PostPosted: Wed 24 Jul - 18:34 (2013)    Post subject: Homemade chassis project Reply with quote

Some news :

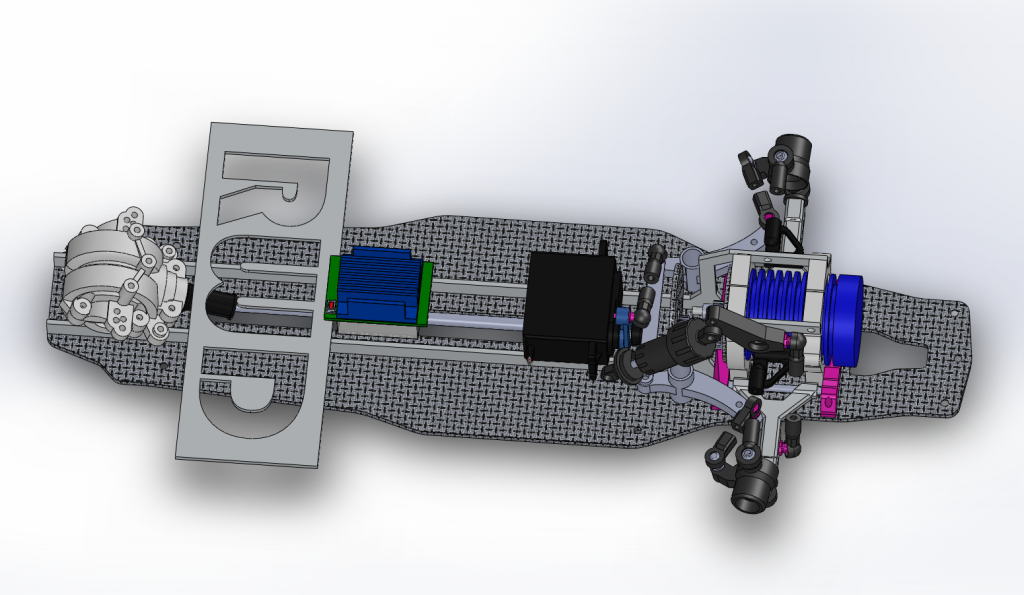

A lot of ackerman for the moment but we are currently fixing it. Rear gear box is almost finish.
The problem with 3D printed parts is that threads haven't a long life (contrary to threads in aluminum). It's why I have design the gearbox like this and I will use threaded rods across the gear box with lock nuts to link the gear box to the chassis.

I have received some printed parts for my Sakura FF :





I will test the printed Y arms during next weeks. If it's too weak, I think I will buy Wrap up Y arms or some from an other brand.


Back to top
florianar
Administrateur

Offline

Joined: 24 May 2013
Posts: 527
Localisation: grenoble france
Masculin

PostPosted: Wed 24 Jul - 19:39 (2013)    Post subject: Homemade chassis project Reply with quote

it's some plastic parts? because it's like foam Shocked
_________________
keep fun with the RWD Wink


Back to top
Dragula


Offline

Joined: 24 May 2013
Posts: 28
Localisation: France

PostPosted: Wed 24 Jul - 19:49 (2013)    Post subject: Homemade chassis project Reply with quote

It's not foam Laughing It's polyamide powder sintered by laser Mr. Green But it's true, it's look like foam

Back to top
florianar
Administrateur

Offline

Joined: 24 May 2013
Posts: 527
Localisation: grenoble france
Masculin

PostPosted: Wed 24 Jul - 19:51 (2013)    Post subject: Homemade chassis project Reply with quote

it's solid?
_________________
keep fun with the RWD Wink


Back to top
Dragula


Offline

Joined: 24 May 2013
Posts: 28
Localisation: France

PostPosted: Wed 24 Jul - 20:07 (2013)    Post subject: Homemade chassis project Reply with quote

I don't know... Laughing

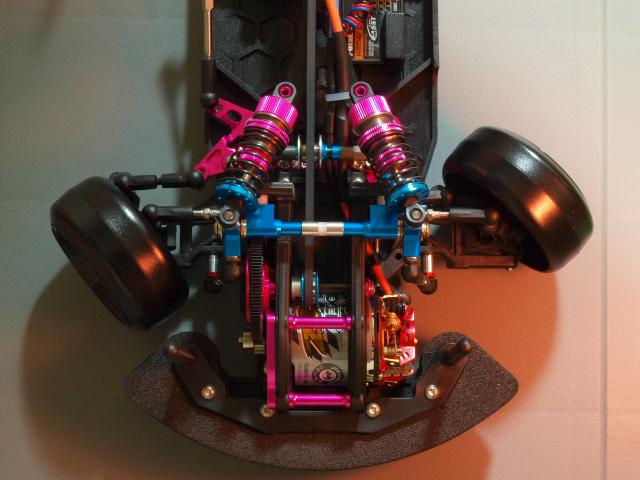

On my Sakura FF, I only broke one part :



The part bent during a long long time before break. there were many constraints on it.
I use this part like a shock tower to hold pivots for the shocks. I designed a new one, stronger, shorter, with reinforcements



About the bearing holder, they are like new Cool The steering rack took a little play but is still working. I designed a new one to try to solve this problem.

I will test the Y arms on my CS chassis, I will see if it's break or not.
Waits for the feedback... Razz


Back to top
RCJohan


Offline

Joined: 24 May 2013
Posts: 355
Localisation: Sweden
Masculin

PostPosted: Thu 25 Jul - 13:23 (2013)    Post subject: Homemade chassis project Reply with quote

That's looking really good, I'm going to make printed RC parts too when school starts since I have a few printers and a CNC machine that I can use whenever I want to  Mr. Green  One thing I noticed though, when designing your pieces, don't forget to smoothen out the 90degree angles, make them more rounded, usually it's enough with just a mm or two! It's in those corners that the most force is concentrated, and rounding them off helps the force spread out in the piece for!

Back to top
Dragula


Offline

Joined: 24 May 2013
Posts: 28
Localisation: France

PostPosted: Thu 25 Jul - 16:39 (2013)    Post subject: Homemade chassis project Reply with quote

I have do this on the Y arm and others parts Wink But on the shocks tower it's not possible at this place or I must grind the bulkhead cover to make it rounded, and I don't want to remove the pink Laughing

Last edited by Dragula on Thu 25 Jul - 17:41 (2013); edited 1 time in total
