Homemade chassis project
Goto page: 1, 2  >

Post new topic   Reply to topic    rwd rc-drifters Forum Index -> CHASSIS -> home made
Previous topic :: Next topic
Author Message
Dragula


Offline

Joined: 24 May 2013
Posts: 28
Localisation: France

PostPosted: Mon 10 Jun - 18:54 (2013)    Post subject: Homemade chassis project Reply with quote

Hi people !

My first drift project was the conversion of one 3R Sakura FF (Front motor, front wheel drive) in a AWD CS chassis. It was before the release of Sakura D3, R31 front motor, MS01-D, ... This first project is almost finished but I don't want to invest more money into it.
Today I want to design my own RWD drift car. A friend joined me in this project. (Tolga)

Specifications:
- Front motor (like FR-D) motor between the wheels
- shaft drive
- lipo across the width at the rear
- wide angle steering
- not exceed the price of a FR-D kit (I will try...)

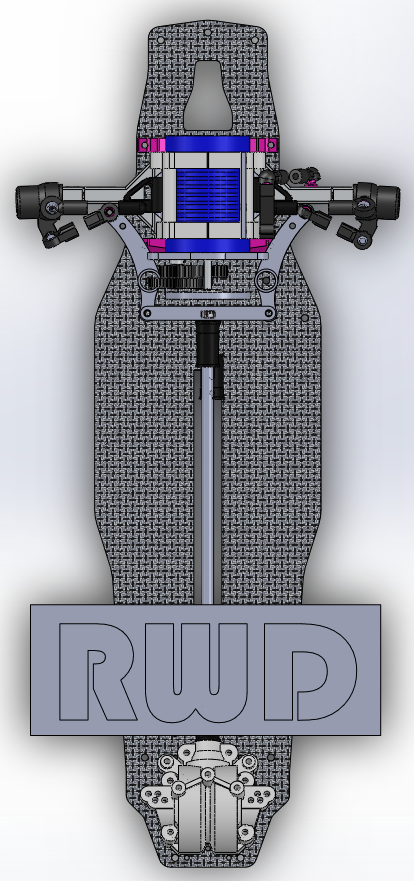

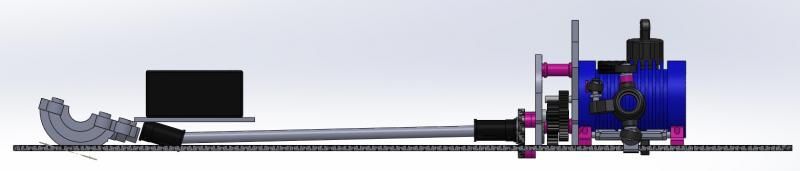

Some pics





Front arm are Yokomo wrap up.
Diff case come from the Tamiya TB03. I modeled it just to try. Maybe I will print a custom version with 3D printer. For the moment I'm looking for a cheaper solution, because the price of one 3D printed case is approximately 45€! Just for one piece of plastic... Maybe one friend can realize bearing holder in aluminum.

About the steering, my friend Tolga modeled the steering of the Sakura D3. It's working well but one arm touch the pinion gear on the front... We are waiting for the Yokomo Type C steering to make some test. (sorry no pictures)



Work in progress...
